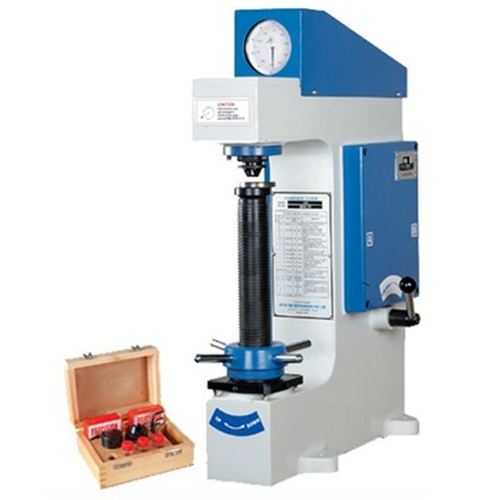

Fully Automatic Touch Screen Load Cell Based Rockwell Hardness Tester

Get a Price/Quote

Fully Automatic Touch Screen Load Cell Based Rockwell Hardness Tester Specification

Application
Industrial

Color
White

Test Range
98.07N (10kgf) for Rockwell

Dimension (L*W*H)
Max Test Height : 270mm, Depth of Throat : 165mm Millimeter (mm)

Control Mode
Auto

Fully Automatic Touch Screen Load Cell Based Rockwell Hardness Tester Trade Information

Minimum Order Quantity
1 Number

Payment Terms
Cheque

Supply Ability
1 Number Per Day

Main Export Market(s)
Asia

Main Domestic Market
All India

About Fully Automatic Touch Screen Load Cell Based Rockwell Hardness Tester

Features

Automatic Z Axis : Just press START, entire process will be done automatically. The sample will be auto lifted to approach the indentor, and finish hardness testing automatically.

Load Cell, Closed Loop, Force Control : TLRH-Z/TLRSH-Z is a new generation load cell Rockwell Hardness Tester with electronically controlled, closed loop system and advanced force technology to achieve absolute accuracy, reliability and repeatality.

Adjustable Illumination System : Built-in adjustable illumination light source is fitted in machine to see the test area clearly.

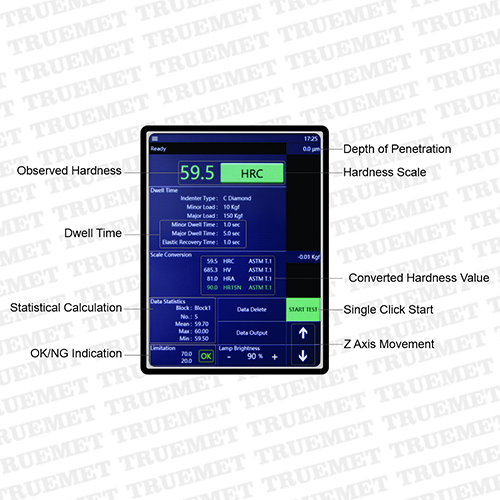

Large Touch Screen Panel : Multi function 8 inch touch screen panel is fitted on machine which display various data output. Such as observed hardness, permanent depth of penetration, max depth of penetration, indentor type, Minor & Major Load, multiple conversion value, Data Statistics, OK&NG.

Hardness Conversion : 4 conversion scales (hardness value) can be displayed at the same time as per ASTM & ISO standard.

Data Output : Equipped with built-in thermal printer to take the print out hardness result. USB port is also available to get the data in pendrive.

MODEL	TLRH-Z	TLRSH-Z
Z Axis Movement	Auto
Display	8 inch Touch Screen
Initial Test Force (N)	98.07 N (10kgf) for Rockwell	29.42 (3kgf) for Superficial98.07 N (10kgf) for Rockwell
Main Test Force (N)	588.4N, 980.7N, 1471N(60kgf) (100kgf) (150kgf)	147.1N (15kgf), 294.2N (30kgf), 441.3N (45kgf),588.4N (60kgf), 980.7N (100kgf), 1471N (150kgf)
Loading Control	Automatic (Loading, Dwell, Unloading)
Conversion Scale	HR (Rockwell), HB (Brinell), HV (Vickers)
Max Test Height	270mm
Depth of Throat	165mm
Dwell Time	160s
Data Output	Built-in printer & USB port
