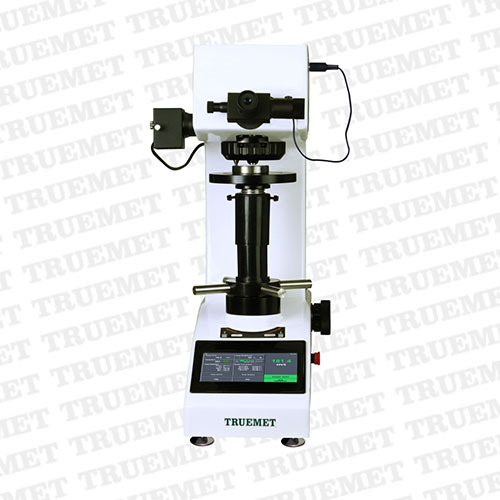

Digital Touch Screen Vickers Hardness Tester (VHT-DT Series)

Digital Touch Screen Vickers Hardness Tester (VHT-DT Series)

Product Details:

  • Power Supply AC220V5% 50-60Hz
  • Dimension (L*W*H) 585X200X630 Millimeter (mm)
  • Machine Weight 42 Kilograms (kg)
1 INR/Number
X

Digital Touch Screen Vickers Hardness Tester (VHT-DT Series) Price And Quantity

  • 1 INR/Number
  • 1 Number

Digital Touch Screen Vickers Hardness Tester (VHT-DT Series) Product Specifications

  • 42 Kilograms (kg)
  • 585X200X630 Millimeter (mm)
  • AC220V5% 50-60Hz

Digital Touch Screen Vickers Hardness Tester (VHT-DT Series) Trade Information

  • Cheque Telegraphic Transfer (T/T)
  • 1 Number Per Day
  • 1 Week
  • All India

Product Description

Features

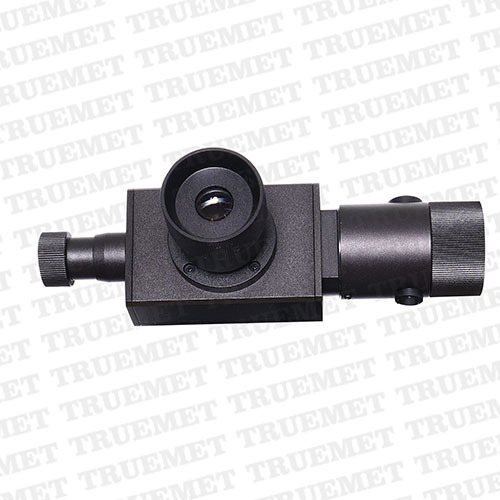

DIGITAL EYEPIECE :Equipped with 10x Digital Eyepiece to directly measure the length of the diagonal. The hardness value can be displayed directly and there is no need to enter the length of the diagonal.

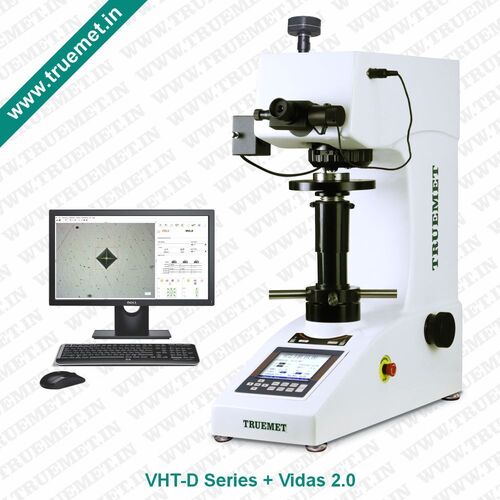

CAMERA PORT :Machine equipped with dual optical channel, one optical channel for 10X eyepiece and another optical channel is for camera by which machine can be upgraded into computerized model. Both optical channel works simultaneously

ILLUMINATION SYSTEM :Halogen illumination unit with adjustable intensity gives very clear images and can be also used as a simple microscope. Halogen illumination unit enter stand by mode after a certain period of inactivity which gives it a long service life and low power consumption.

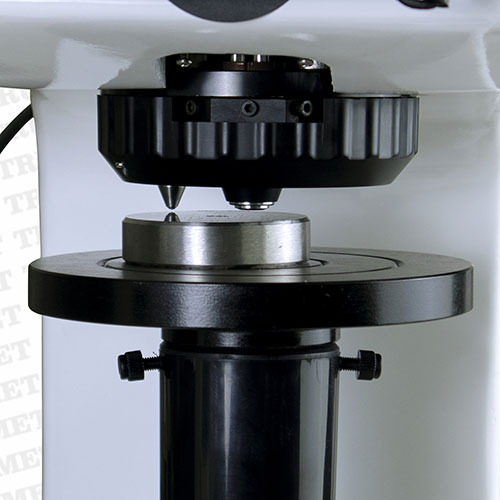

TURRET MECHANISM :Equipped with manual turret mechanism. The position of the indenter and the objective lens can be automatically switched manually.

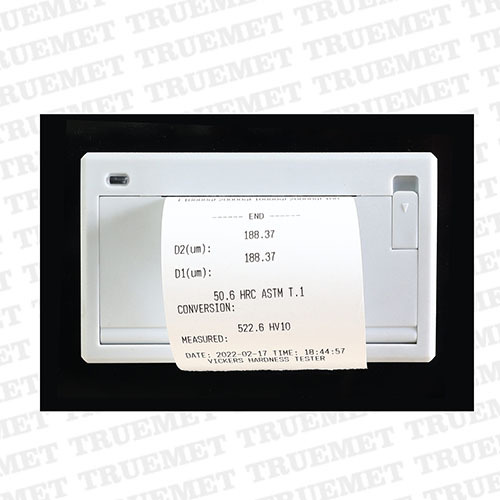

DATA OUTPUT :Equipped with built is thermal printer to take the print out the hardness result USB port is also available to get the data in pendrive

TEST FORCE :Wide range of test force can be selected with external force selection knob. The test force is automatically displayed on the 7 inch LCD touch display.

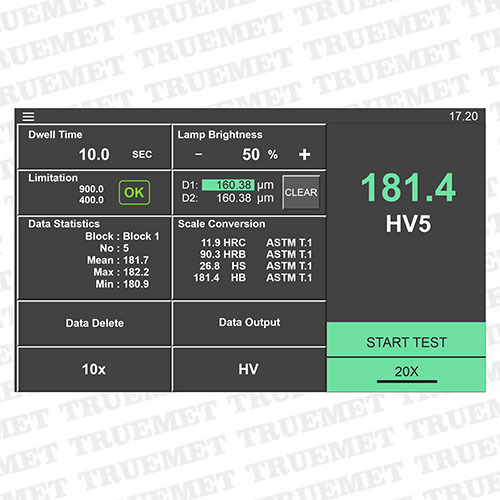

LCD TOUCH SCREEN PANEL :7 Inch LCD touch screen can visually display the hardness value, conversion hardness, test force, dwell time, statistical data, upper & lower limit and brightness of optical system.

EMERGENCY SWITCH :Equipped with emergency stop switch.
